To help insert recognition, the American National Standards Institute (ANSI) developed B212.4-2002 to allow machinists, purchasing departments, and tooling sellers to quickly and easily describe the shape, dimensions, and important parameters of turning inserts.

METAL WORKING :General Production components, Cbn Wheels and Tools Manufacturers in Ambala Cantt, Bhopal, Mumbai , mechanical seals, Bearing seats & pivots, ceramic components, fuel injection valves, Hydraulic & pneumatic components, pump glands, etc.

The Fume Eliminator 860 (FE860) is a portable, on-torch fume extraction solution designed for enhanced functionality, performance and safety. The FE860 can be carried throughout your work area and connects directly to the welding torch to capture fume at the source - the most effective method.

Diamond Files are offered in the form of Needle Files, Riffler Files, Diprofil Files in the normal sizes . Machine files also can be supplied against customer’s specifications.

METAL WORKING :General Production components, Cbn Wheels and Tools Manufacturers in Hyderabad, Chennai, Noida, mechanical seals, Bearing seats & pivots, ceramic components, fuel injection valves, Hydraulic & pneumatic components, pump glands, etc.

They are manufactured Electro Deposited, Resin Bond, and PCD-PCBN Diamond Cutting Tools such as Diamond Dressers, Diamond Lapping Paste, Diamond files, Diamond Slitting Saws / Wheels, Diamond OD Grinding Segments, Diamond ID Grinding Wheels, Diamond / CBN Internal Grinding Pins and many more with International quality standards but offered at highly economical prices enabling them to give optimum yet low cost cutting.

This tool is available in various sizes with the size and quality of the mounted diamond depending upon its usage. The range of single pint diamond dressers offered by us is available in sizes ranging from 0.50 Carat to 5.00 Carat. Depending upon the varying sizes of these single point diamond dressers, they can be used for soft wheels, medium hardness wheels and very hard type of wheels.

Diamond Files are offered in the form of Needle Files, Riffler Files, Diprofil Files in the normal sizes . Machine files also can be supplied against customer’s specifications.

A large nose radius can use higher feed rates, larger DOCs, and handle more radial pressure. A small nose radius takes only small cutting depths, has a weaker cutting edge, and can handle only a small amount of vibration. Our example insert has a radius of 2, meaning it has a nose radius of 1/32 in.

Manufacturers of single Point & Multi Point Dressers, Indenters, Diamond Powder & Paste and Diamond Grit impregnated DressersSingle Point Diamond DressersIn the last few decades, single point diamond dressers have, undoubtedly, emerged as the most widely used diamond dressing tools. The prime reason for the popularity of these tools is the versatility offered by them, as they can be used for truing as well as dressing of grinding wheels.

DIAMOND/CBN MOUNTED POINTS:Electroplated Diamond / CBN Mounted points are used in Bore polishing of collect holding systems. CBN Mounted points are recommended for grinding materials of more than 45 HRC. Different Coating lengths will be provided as per customer’s requirement.

For parallelogram- and rectangular-shaped inserts, width and length dimensions are used instead of the I.C. In these cases, a two-digit number designates the insert’s size. The first digit is how wide the insert is (in eighths of an inch) and the second digit is how long the insert is (in quarters of an inch).

DIAMOND DRESSERS:Diamond Dressers are made of Diamonds that have supreme hardness and high wear resistance. Available types are Single Point , Multi Point , Impregnated, Blade Type, Chisel Point, Cone Type and Indexable Crown, Cluster Diamond Dressers with shanks / holders as per customer’s specifications.

METAL WORKING :General Production components, Cbn Wheels and Tools Manufacturers in Bahadurgarh, Jodhpur, Jalandhar, mechanical seals, Bearing seats & pivots, ceramic components, fuel injection valves, Hydraulic & pneumatic components, pump glands, etc.

WINWIN Diamonds Products are the result of a technical know-how that brings about optimum tool performance providing fast cutting without sacrificing their long lifespan.

Insert thickness is measured from the bottom of the insert to the top of the cutting edge. It also is shown as a one- or two-digit number (indicating the number sixteenths of an inch). Much like the size designation, it is a one-digit number when it describes a whole number. In our example, the insert’s thickness, 3, means that it is 3/16 in. thick.

Electroplated Diamond Manufacturers in Vadodara, Gujarat, Lucknow are the leading manufacturers offered by WINWIN Diamonds Products. We offer best services for Electroplated Diamond Manufacturers in Vadodara, Gujarat, Lucknow. Electroplated Diamond Wheels Manufacturers are the outcome of a technical know-how that gets about optimal tool performance provided that fast cutting without losing their long lifecycle. They are manufactured Resin Bond, Electro Deposited, and PCD-PCBN Diamond Cutting Tools such as Diamond Lapping, Diamond Dressers, Diamond Slitting Saws / Wheels, Paste, Diamond files, Diamond / CBN Internal Grinding Pins, Diamond OD Grinding Segments, Diamond ID Grinding Wheels, and many more with Global quality ethics but offered at highly reasonable prices allowing them to give optimal yet low cost cutting.

Over the years, with developed acquaintance and experience and with its obligation to its clients through superiority products, rapid deliveries and reliable and quick response to its client needs, Win Win has received itself a distinction of The company’s strong knowledge alignment providing the “lowest cost cutting” without negotiating on any aspect of eminence.and backing comes from its loyal team of technically qualified engineers who contribute with innovation and zest into the production, maintenance, quality control and servicing departments of the company.

DIAMOND SLITTING SAWS:Electroplated Diamond saws are advised for using in the manufacture of brake linings, Asbestos, Fibre and Reinforced plastic, Hard Plastics, Carbon industries etc. Metal Bond saws are suitable for sawing and slitting Tungsten carbide. Ceramics, Quartz, Glass etc. Slitting saws from 30mm dia to 650 mm dia can be supplied.

Diamond Files are offered in the form of Needle Files, Riffler Files, Diprofil Files in the normal sizes . Machine files also can be supplied against customer’s specifications.

Manufactured using high quality raw diamond that is selected with utmost precaution, Win Win single point diamond dresser is formed by either mounting a natural diamond or a bruted diamond at the top of the tool by using a special adhesive. The diamond used in a single point diamond dresser is selected on the basis of the following parameters:

The space provided by this clearance keeps the insert from rubbing against the part. If the insert does have a 0-degree clearance angle (N), chances are it is being used in a roughing operation. The different clearances are:

The success or failure of a turning job often depends on decisions made early in the process -- before the cutting even begins -- about a small piece of carbide, cermet, ceramic, or diamond.

METAL WORKING :General Production components, Cbn Wheels and Tools Manufacturers in Goa, Pune, Ahmedabad, mechanical seals, Bearing seats & pivots, ceramic components, fuel injection valves, Hydraulic & pneumatic components, pump glands, etc.

Diamond Files are offered in the form of Needle Files, Riffler Files, Diprofil Files in the normal sizes . Machine files also can be supplied against customer’s specifications.

Turning on a lathe is an operation in which a stationary single-point cutting tool meets a rotating workpiece to produce axially symmetrical shapes. Sounds pretty easy, right? Well, it typically is, if the correct cutting parameters and inserts are chosen for the job.

For turning inserts, it comes in the form of a 10-place string of numbers and letters, (the first seven are required and the last three are optional), with each describing a portion of the tool.

Diamond Files are offered in the form of Needle Files, Riffler Files, Diprofil Files in the normal sizes . Machine files also can be supplied against customer’s specifications.

METAL WORKING :General Production components, Cbn Wheels and Tools Manufacturers in Pondicherry, Hosur, vappi, mechanical seals, Bearing seats & pivots, ceramic components, fuel injection valves, Hydraulic & pneumatic components, pump glands, etc.

The first place shows the shape of the insert. There are 17 standard indexable insert shapes, and each is given a capital letter. In our example, C indicates that the insert is a rhombic-shaped insert of 80 degrees.

An award-winning writer and graduate of the Sheridan College journalism program, he has published articles worldwide in a variety of industries, including manufacturing, pharmaceutical, medical, infrastructure, and entertainment.

METAL WORKING :General Production components, Cbn Wheels and Tools Manufacturers in Nasik, Aurangabad, Mysore, mechanical seals, Bearing seats & pivots, ceramic components, fuel injection valves, Hydraulic & pneumatic components, pump glands, etc.

WINWIN Diamonds Products are the result of a technical know-how that brings about optimum tool performance providing fast cutting without sacrificing their long lifespan.

Inserts can be designed with or without holes; have cylindrical, single-countersink, or double-countersink holes; and come with multiple chipformer styles. If the insert has a designation of X in this location, it has a special design.

Old No: 132, New No. 45, Santhosh Nagar, Harivaradhan Street, Kandanchavadi (OMR), Chennai – 600 096. Mobile: +(91) – 9940667675 – 9840317793 – 8056224669 wintechdiamondravi@gmail.com Links

Whether the application calls for rough turning, medium turning, or finish turning, the decision on what technology to use should come well before the material is loaded onto the machine or into the bar feeder.

Also known as the clearance, the second place shows the angle between the flank and top surface of the insert. Each relief angle is denoted by a capital letter. In our example, the insert has a 0-degree relief angle.

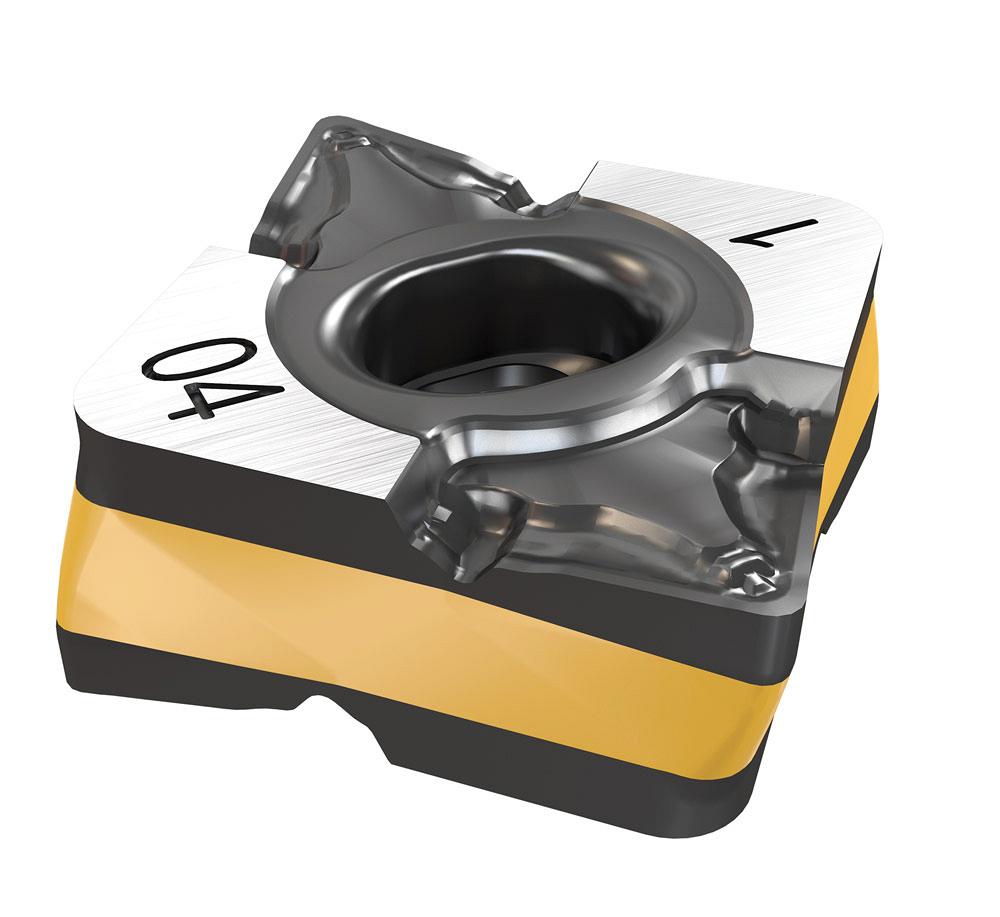

The fourth place in an insert’s designation is another capital letter. This one helps describe more of the insert’s design features, such as its fixing holes, countersinks, and any chipformer features. There are 14 standard types (A, B, C, D, G, J, M, N, Q, R, T, U, W, X).

Single-point cutting tools remove workpiece material by using one of the insert’s cutting edges. But how do you differentiate one insert from another? It starts by understanding their designation.

These measurements and tolerances can get tricky and change based on the insert's shape, so it’s a good idea to consult the literature that accompanies your tooling purchase to get this right.

Our example has a G in this place. This indicates that the insert has a cylindrical hole and has a double-sided chipformer.

Diamond Files are offered in the form of Needle Files, Riffler Files, Diprofil Files in the normal sizes . Machine files also can be supplied against customer’s specifications.

Other than shape, an insert’s size is one of the variables that is easily noticed. In our example, the 4 indicates that the insert’s size is 1/2 in.

Diamond Files are offered in the form of Needle Files, Riffler Files, Diprofil Files in the normal sizes . Machine files also can be supplied against customer’s specifications.

Easily access valuable industry resources now with full access to the digital edition of Canadian Fabricating & Welding.

METAL WORKING :General Production components, Cbn Wheels and Tools Manufacturers in Delhi, Faridabad, Gurgaon, mechanical seals, Bearing seats & pivots, ceramic components, fuel injection valves, Hydraulic & pneumatic components, pump glands, etc.

METAL WORKING :General Production components, Cbn Wheels and Tools Manufacturers in Chandigarh, Coimbatore, Bangalore, mechanical seals, Bearing seats & pivots, ceramic components, fuel injection valves, Hydraulic & pneumatic components, pump glands, etc.

Joe Thompson has been covering the Canadian manufacturing sector for more than two decades. He is responsible for the day-to-day editorial direction of the magazine, providing a uniquely Canadian look at the world of metal manufacturing.

There are 14 tolerance classes, the third place, that show how each insert indexes. Each class is denoted by a capital letter. Letters for tolerances are A, B, C, D, E, F, G, H, J, K, L, M, U, and N, which describe the size of the cornerpoint, thickness, and the inscribed circle (I.C.) of the insert. An I.C. is the largest circle that can be drawn inside the given shape.

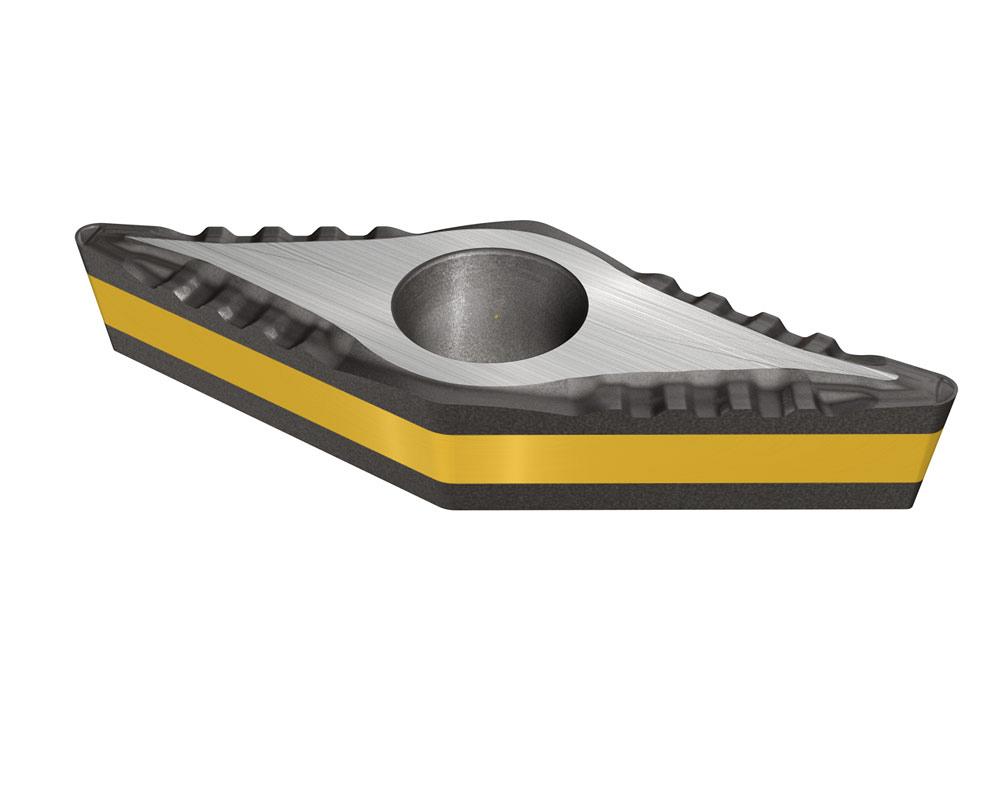

Some inserts, like round ones (R), have high edge strength, while some rhombic-shaped inserts (D and V) have a sharp point, which is good for finishing operations. Trigonal inserts (W) often are used for rough machining because of their larger point angle. Each has its place. The shape of the insert also determines how many separate edges can be indexed to as each wears out. The common insert shapes are:

The eighth, ninth, and 10th positions in ANSI’s guide are optional and represent the cutting edge condition (aka edge prep, such as sharp, rounded, or chamfered); cutting direction (left, right, or neutral); and information on the insert’s chipformer (FP -- finishing sharp, UN -- universal medium, and HP – high positive).

Keep up to date with the latest news, events, and technology for all things metal from our pair of monthly magazines written specifically for Canadian manufacturers!

Insert measurements and tolerances can get tricky and change based on the insert's shape, so it’s a good idea to consult the literature that accompanies your tooling purchase to get this right.

Insert choice requires taking into consideration a whole host of variables, including an insert’s size, shape, and overall design features. In most cases, the tool is held in a fixed position in a tool body and the workpiece rotates in the lathe’s turning axis.

The DOC should not exceed 66 per cent of the cutting edge's length for insert shapes S and C, 50 per cent of the cutting edge's length for insert shapes T and D, 25 per cent of the cutting edge's length for insert shapes W and V, and 40 per cent of the insert's diameter for shape R.

Electroplated Diamond Manufacturers in Secunderabad, Visakhapatnam are the leading manufacturers offered by WINWIN Diamonds Products. We offer best services for Electroplated Diamond Manufacturers in Secunderabad, Visakhapatnam. Electroplated Diamond Wheels Manufacturers are the outcome of a technical know-how that gets about optimal tool performance provided that fast cutting without losing their long lifecycle. They are manufactured Resin Bond, Electro Deposited, and PCD-PCBN Diamond Cutting Tools such as Diamond Lapping, Diamond Dressers, Diamond Slitting Saws / Wheels, Paste, Diamond files, Diamond / CBN Internal Grinding Pins, Diamond OD Grinding Segments, Diamond ID Grinding Wheels, and many more with Global quality ethics but offered at highly reasonable prices allowing them to give optimal yet low cost cutting.

To do this it’s important to have at least some understanding of the American National Standards Institute (ANSI) turning insert designations. ANSI developed this system of numbers and letters (B212.4-2002) to allow machinists, purchasing departments, and tooling sellers to quickly and easily describe the shape, dimensions, and important parameters of turning inserts. It essentially gets everyone on the same page.

The fifth position in ANSI’s designation is either a one-digit or a two-digit number that shows the I.C. size (in eighths of an inch) for round, square, triangle, trigonal, pentagonal, hexagonal, octagonal, and rhombic inserts. If it’s a one-digit number, the eighths of an inch make a whole number.
