Routers for Composites - left handed carbide end mills

These high-quality jigsaw blades are very competitively priced. The entire set is housed in a useful and sturdy clear plastic case.

A higher TPI means there’s little space between the teeth for waste clearance. For example, using an 18 TPI blade in wood will result in clogging of the blade. Conversely, 6 TPI is too low to cut metal as the teeth would just bounce off the surface. While there are always exceptions, jigsaw blades for wood are usually between 6 and 12 TPI. Jigsaw blades for plastics and laminates are generally 8 to 14 TPI, and jigsaw blades for metals are mostly 14 to 24 TPI.

While there is little variation in blade thickness, a thinner blade can cut tighter curves than a thicker version when a choice is available. Of course, the thinner blade is also more prone to breakage and will wear more quickly.

The tool is suitable for trimming 2-D contours in nonferrous materials, such as aluminum and copper.

There are also variations in tooth shape and pattern. For instance, back-cutting jigsaw blades cut on the downstroke, not the upstroke. These reduce tear-out in wood and chipping in laminates, so they are popular for sawing kitchen countertops and flooring. Other blades are referred to as “skip-tooth blades,” in which areas of teeth are shorter or missing entirely. These gaps allow for clearance of difficult waste, such as that produced when cutting some plastics.

Users who have ever tried to cut awkward shapes out of tile will appreciate this specialist ceramic-cutting jigsaw blade from Bosch. In addition to rapid cutting of straight lines or curves in ceramic, it is equally effective at sawing through glass and fiberglass.

“The unique design of the solid-carbide end mills is not only the polished surface quality, but also the surface quality of the pressure ridges. These pressure ridges are designed to compact and smooth the material,” explained Dan Doiron, Emuge milling products manager.

“The higher the tensile strength, the more critical it is in the compaction of the material,” said Doiron. “Nonferrous materials have a lower tensile strength that requires less cutting force than that of steel or hardened materials.”

There are four materials or material combinations in general use for the manufacture of jigsaw blades: high-carbon steel (HCS), high-speed steel (HSS), bi-metal (BiM), and tungsten carbide (often just called carbide).

The surface quality is also dependent on the coolant, said Doiron, with optimal results produced using minimum quantity lubricant (MQL) oil.

The information above is valuable in helping to determine the best jigsaw blades for different tasks. That said, there’s no substitute for practical examples. The following products represent some of the best jigsaw blades available today. While high-quality blades from Bosch dominate the market (they invented the T shank), there are multiple interesting and cost-effective alternatives.

The other important item to note is the substrate of the tool. It is made from solid carbide, which is very hard, and too much force on the tool can prevent the optimal surface finish from being attained in harder materials.

While this is a comparatively expensive blade, it has few rivals for performance or long working life. However, those looking for a jigsaw blade for materials like cement board or plasterboard should consider a carbide-toothed blade rather than carbide grit, which is likely to clog.

The pack contains three T-shank blades made of HSS. They have 14 TPI and are 4 inches in length, with a maximum cut of 2¾ inches. While this working length does somewhat restrict their use, the blades are very rigid for fast, clean cutting. The teeth are specially ground to a taper, so plastics don’t bind to the blades, one of the main causes of uneven cutting.

There’s also a chance that older jigsaws may have a proprietary blade fitting. Some Makita jigsaws, for example, had blades specific to the brand. It may be challenging to find these blades, so buying a new jigsaw might be the better long-term solution if the tool is old.

While jigsaws that require U-shank fittings are no longer available as new, plenty of older models are still in use. This affordable Black & Decker blade set provides a versatile collection for owners of those tools.

Joe Thompson has been covering the Canadian manufacturing sector for more than two decades. He is responsible for the day-to-day editorial direction of the magazine, providing a uniquely Canadian look at the world of metal manufacturing.

The geometry of the tool (see Figure 1) has cutting edges that remove material [shown in red] and pressure ridges that compact and smooth the material to produce polished surfaces [shown in green].

Small particles of tungsten carbide are bonded to the blade, which then receives a proprietary coating to improve durability. The 3¼-inch blade has a working length of 2⅝ inches.

This 5¼-inch T-shank blade from Bosch has 6 TPI. The teeth are carbide tipped to retain sharpness, and they also resist heat buildup, thus providing exceptional life. The blade capacity is from 1¼ to 3⅛ inches in cement board and from ¼ to 2⅜ inches in plasterboard and fiberglass. The thin kerf minimizes material loss, allowing for accurate dimensioning.

The set provides 24 blades at 3 inches in length, all made from high-carbon steel. They range from 6 TPI for rapid wood cutting to 24 TPI for sawing through sheet metal. A slender 10 TPI scrolling blade is for cutting tight curves in wood. The metal cutting blades will handle aluminum, copper, and similar “soft” metals but are not recommended for steel.

Easily access valuable industry resources now with full access to the digital edition of Canadian Fabricating & Welding.

It’s advisable to wear a glove after recent usage of the tool because the old blade may be very hot. The blade is clamped either by an Allen screw or a tool-free mechanism that is part of the jigsaw, and a couple of turns loosens it. Though it may require turning 90 degrees, the blade is easy to pull out, depending on the mechanism. Then, insert the new blade into the slot and retighten the clamp.

Some blades have no teeth at all—not only the carbide versions mentioned above, but also those with knife-like wavy edges designed to cut polystyrene, leather, and other fabrics. For anyone who frequently cuts one type of material, it’s worth looking for blades specifically designed for that material. They will cut faster and more accurately than general-purpose alternatives.

The number of teeth per inch (TPI) has a major impact on blade performance. Generally speaking, fewer teeth mean a faster, rougher cut, and more teeth mean a slower, smoother cut. Actual blade TPI can range anywhere from 6 to 32. However, there are additional factors to consider.

Bosch refers to the supplied case as “Brute Tough,” which underlines its strength. While this jigsaw blade set is more expensive, the quality and performance make it a worthwhile investment for the keen amateur and the professional alike.

The broad versatility of jigsaws means you’ll find them just about everywhere, from home tool kits to construction sites to engineering works. A large part of their popularity is because, with the right blade, the best jigsaws can cut just about any material the DIYer or professional user selects. There are jigsaw blades for wood, laminates, composites, various plastics (including plexiglass), metal, ceramics, and even leather and polystyrene.

On a regular jigsaw, the blade moves straight up and down. On an orbital model, it also moves forward and back, following an elliptical path that makes for a more efficient cutting action.

If a saw blade becomes gummed up with sap, resin, or glue, a quick wipe down with spirit or rubbing alcohol will often clean it off. Some people dip blades in a solution of laundry detergent; others use oven cleaner, and commercial saw-cleaning products are also available. That said, many users treat jigsaw blades as disposable items that they can simply replace rather than cleaning them.

Whenever possible, a blade should be at least a half an inch longer than the thickness of the material it is cutting. If the blade is too short, there’s a risk that it will jump out of the cut as the jigsaw action goes up and down, often snapping the blade. Note that there can be a difference between actual blade length and effective or working length, depending on different fitting methods and tooth configurations. Manufacturers often clarify by providing a maximum depth of cut.

Older models might use a U shank, and blades of this type are still readily available. U-shank blades have a screw or Allen bolt holding them in place, so replacement takes a little more time. Remember to check which type you’ll need, because T-shank and U-shank blades are not interchangeable.

This low-cost but comprehensive set of HCS, HSS, and BiM jigsaw blades is likely to last the DIY user many months. A durable storage case is included.

Machine shops have many options when searching for a solid-carbide end mill. The type of end mill, geometry, and coatings all are selected based on the operation and the material being cut. Then it’s time to rough, and then finish the cut.

“The development stemmed in part from a customer in the communications industry who was looking to finish the exterior of an aluminum housing and wanted a polished surface that did not require any additional polishing after the milling process,” said Doiron.

While carbide-tipped blades are also commonly used for sawing stainless steel and cast iron, that’s not the purpose of this blade. Users looking to cut those materials should consider a 3- or 4-inch blade between 18 and 24 TPI.

The letter—T or U—describes the shape at the top of the blade where it clamps inside the jigsaw. Almost all manufacturers now use T-shank blades. U-shank blades may still be required for older tools.

Contractors who use a jigsaw all day every day go through blades quickly. This set is designed to give them a cost-effective supply without sacrificing quality. It also makes great sense for the home user who seldom does more than cut wood or thin metal.

The set features 50 T-shank blades ranging from 6 to 21 TPI in 3-inch and 4-inch lengths. These provide for either fast or smooth cutting in wood, plywood, composites, and metal. There are also 10 back-cutting blades suitable for laminates like flooring and kitchen countertops.

It’s also important that the blade is not too long. The longer the blade, the more chance there is of flexing, making it difficult to follow a cut line. Having a wide assortment of blades is not expensive, though, and it means the correct length is usually at hand.

Users should typically avoid buying inexpensive jigsaw blades because they tend to be extremely thin and bend easily, even when cutting wood. However, for a budget-friendly price, this set from WORKPRO strikes the right balance between cost and quality.

With the “cutting” edge, the tool creates a machining process that uses very small stock material (0.004 to 0.008 in.) for the pressure ridges to produce a polished surface.

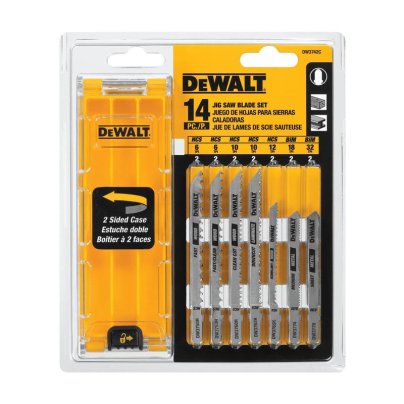

DEWALT’s versatile set of jigsaw blades allows buyers to try a wide variety of blades without significant expense, offering valuable experience for buying more blades when these eventually wear out. The 14-piece T-shank set includes two each of seven different types of blades, including 4-inch HCS blades for wood cutting and 3-inch BiM blades for metal cutting. Teeth range from a rapid rate 6 TPI to an ultra-smooth 32 TPI. The set also features a back-cutting blade for laminates and a slender wood blade for tight curves.

Yes. For accurate lines, use a guide rail clamped to the workpiece. Check out this useful guide to using a jigsaw here.

Keep up to date with the latest news, events, and technology for all things metal from our pair of monthly magazines written specifically for Canadian manufacturers!

The Bosch contractor jigsaw blade set is an excellent choice for enthusiastic DIYers and a wide variety of tradespeople. These are high-quality blades incorporating HCS, HSS, and BiM, with unique features like progressive tooth pitch on some blades that provides outstanding multipurpose cutting.

Emuge Corp., West Boylston, Mass., has introduced the Cut & Form solid-carbide finishing end mill, which features a patented tool geometry that performs two functions -- cutting and polishing -- in one operation.

The set contains 21 T-shank blades in six styles, ranging from 6 to 24 TPI and 3⅝ inches to 5¼ inches in length. In addition to the expected wood and metal blades, the set also includes all-purpose “Progressor” versions and two specialist blades for fiber and plaster.

Unlike many saw blades whose life can be extended by resharpening, jigsaw blades are invariably treated as consumables. Nevertheless, by choosing the best jigsaw blades for the task, you can maximize both economy and productivity. This guide will show you how, by highlighting the important factors to consider when shopping and then reviewing some of the top products on the market.

Easily access valuable industry resources now with full access to the digital edition of Canadian Metalworking.

Articles may contain affiliate links which enable us to share in the revenue of any purchases made. Registration on or use of this site constitutes acceptance of our Terms of Service.

Not necessarily. More teeth result in a smoother finish, but fewer teeth produce a faster cut. The material being sawed also factors in.

Definitely. One of the benefits of a jigsaw is its versatility. A jigsaw can cut freehand curves, or accessories are available to cut accurate circles.

ISCAR Is About to Change Metal Cutting… Again! ISCAR is set to revolutionize metal cutting once again with its latest product launch, "LOGIQUICK". This new brand name signifies ISCAR's new marketing theme and encompasses three key words: "Logic", "IQ", and "Quick". Click to enter the exciting new world of advanced machining.

It may not be obvious which type of shank is required with older jigsaws. In this case, it’s possible to try a universal shank, although “universal” is a bit of a misnomer as they don’t fit all machines. Variety is also limited.

While professionals might prefer longer blades, this set provides a good balance between quality and value for the DIY user.

The end mill is available in two types, stub length and standard length, with cutting diameters of 6, 8, 10, and 12 mm.

While plexiglass is not particularly difficult to cut, few blades of any kind do it very well. The result is often a poor finish with razor-sharp splinters or shards that can cause painful injuries. This three-pack of specialist blades from Bosch is designed to overcome those problems. These blades will also cut acrylic sheets, most plastics, and hard foam.

Other sets may offer more versatility, but for general-purpose use, this variety of HCS and HSS blades delivers outstanding value. A hard-wearing storage case is included.

The information above is intended to provide a thorough understanding of how to choose the best jigsaw blades for particular tasks. The inclusion of these top picks has supported that understanding with a comprehensive selection of real-world examples. Nevertheless, for those who still have questions that remain unanswered, the following section seeks to answer some common queries about jigsaw blades.

While demolition blades do a good job tearing down fiber, plaster, and cement boards, they wear out comparatively quickly on abrasive building materials. They are also too coarse for precision work like cutting to size or making holes for service pipes.

An award-winning writer and graduate of the Sheridan College journalism program, he has published articles worldwide in a variety of industries, including manufacturing, pharmaceutical, medical, infrastructure, and entertainment.

The tool’s dual functionality comes from its design, which incorporates three cutting edges to remove material and three burnishing edges to compact the material. This produces polished mirror surfaces as fine as 0.08-μm Ra.

Bob Beacham is an engineer by trade and has spent 35 years working on everything from auto parts to oil rigs. He is also an avid DIY enthusiast. Bob started writing for the Bob Vila team in 2020 and covers tools, outdoor equipment, and home improvement projects.

“This medium is 100 per cent free from other microparticles in comparison to standard emulsion coolant. However, coolant can also be used with success if oil application is not desired,” said Doiron.

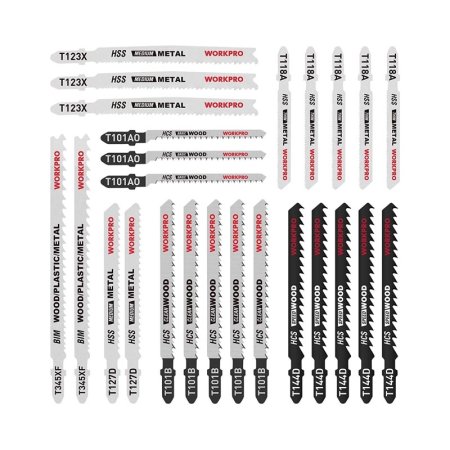

The 25-piece T-shank set offers seven blade types, ranging from a 3-inch metal-cutting blade with 21 TPI to an unusual 5-inch blade that features 5 TPI on one end and 10 TPI on the other. While it’s always best to use specific blades where practical, this option is a good all-arounder or demolition blade that can cut through wood, aluminum, and hard plastics.

Typically, finishing operations, depending on the required finish, take the most time to complete. However, a new product may help reduce some of the fine-finishing time required to achieve a polished surface after cutting.

“Cut & Form end mills are another example of innovative technology at work [that has been] designed to dramatically speed machining throughput, eliminating time, secondary operations, and cost,” said Bob Hellinger, president of Emuge Corp.

Most of the best jigsaw blades have a T shank. In most cases, jigsaws that accept T-shank blades have mechanisms for tool-free replacement, so it’s a quick and easy process. This is far and away the most common type of blade in current use, and virtually all new jigsaws use them.

We’re committed to testing and reviewing products so you can make an informed decision. Advertising does not influence our product reviews and it never will. We always focus our coverage on standout products and never hesitate to mention their flaws and quirks. By using our affiliate links, you’re supporting our work and helping us continue to provide expert analysis. Find out more about our product evaluation process.

Combination jigsaw blade sets offer versatility and good value, and not surprisingly, they are very popular. However, the immense range of choices can be confusing, along with the number of specialist blades that deliver more efficient sawing for specific materials. Read on to discover the key features that shoppers need to consider when choosing the best jigsaw blades for particular tasks.

The final factor is the jigsaw itself. It’s essential to understand the specification requirements, as not all tools can accept the full range of available blade lengths.
