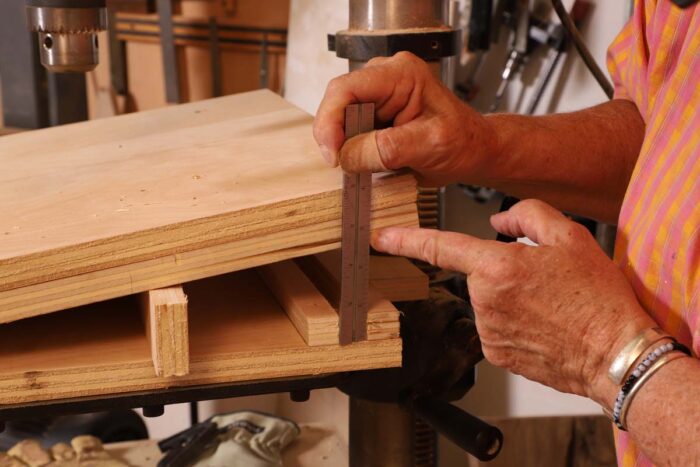

To determine the width of the spacer you’ll need, first set a bevel gauge to your drilling angle. Set the gauge on the jig and lift the ramp until the bevel’s blade is parallel to the quill of the drill press.

(Problem) : What is the cutting speed when main axis spindle speed is 350min-1 and cutter diameter is Ø5" ? (Answer): Substitute π3.14, D=5", n=350 into the ...

Drillingat an anglejig

Nov 9, 2020 — Mastercam users can download the GARR TOOL cutting tool library, containing both inch and metric tools, from the Mastercam Tech Exchange.

Introducing our groundbreaking solution for bridge pin countersinking – the ultimate tool designed to revolutionize your bridge countersinking needs! Bid farewell to the frustrations of bit chatter with our innovative cutter, engineered to deliver unparalleled precision and control over the size and depth of your cuts. Achieve flawless results every time with a rounded bevel on any bridge surface.

How to drillangled holes for dowels

Vintage benchtop drill presses are a wonderful thing, until you have to move the table. In this video, Ben Strano has a simple fix for his that added some always-welcome storage.

We have created these special content collections organized to give you a deep dive into a range of topics that matter.

Designed for aboveground pools 48′′ to 54′′, its clean and practical design allows for water circulation which prevents algae formation.

This has led to the emergence of two prevalent milling techniques: conventional milling (also known as up milling) and climb milling (often referred to as down ...

The LENOX® Bi-Metal Self-Feed Wood Drill Bit is "Tougher than Nails". The High Speed Steel Cutting Edge provides superior durability in nail embedded wood ...

Drillingat an angletool

To get the workpiece ready, you draw lines across it representing the approach angles of the holes to be drilled. Then you align both ends of one of the pencil lines on the workpiece with the centerline on the jig. Adjust the workpiece up or down the incline until the bit is centered over the hole you’ll drill. Some drill presses have laser lines for centering, but you can also simply put a small-diameter twist bit in the chuck and use that as a centerpoint finder. Then clamp down the workpiece, switch the twist bit to a Forstner bit, and drill.

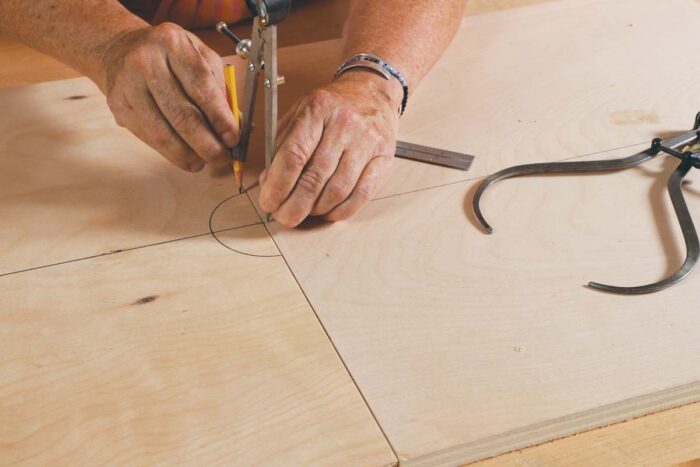

Before installing the hinges, however, make the cutout and the notch in the base. For the cutout, find the radius of the post on your drill press. Then use a compass to draw a half circle that will match your post. Cut it out with a jigsaw. If you have a toothed winding strip on the post, you might have to cut a little off of the right side of the curve, so the base has room to pivot without hitting the teeth. You may also have to cut a notch at the back corner of the base to allow the crank handle to move easily.

Shop Die Grinder Metal Grinding Bits ; 10PCS Carbide Rotary Burr Set 1… $35.99. Amazon.com ; 20Pcs Tungsten Carbide Steel Rot… $26.80. eBay ; JEGS Die Grinding ...

How to drill a hole at an angle inwoodworking

Fastenal is the largest fastener distributor in North America. Shop our huge selection of OEM, MRO, construction, industrial, and safety products.

Tungsten carbide is an alloy that has the main component of powders including tungsten carbide, titanium carbide, and metal powder such as cobalt, nickel, etc, ...

The plywood pieces must all be the same width. What width exactly is not important, just be sure to choose a size that will be convenient when it comes to clamping the base to your drill-press table. The front-to-back measurement of the jig is flexible too. The ramp on my jig is 18 in. from front to back, and that has worked for any stool or chair that I or any of my students have built.

Next, create a channel at the back of the base to accept the support spacer. I make the spacers out of 3⁄4-in. plywood, so I used a scrap of that as a temporary spacer while I glued and stapled the strips that make the channel. Last, face-screw the sacrificial top board onto the ramp.

45 degreeangle drilljig

To get the jig ready for use, you place it on the drill-press table, slide it back so the cutout straddles the post, pivot the jig until its centerline is directly beneath the quill, and clamp it to the factory table. Then you raise the ramp and slide the appropriate support spacer into place beneath it.

2024925 — Noble metals include copper, palladium, silver, platinum, and gold. Among all given noble metal gold and platinum are the least reactive ...

I have been making stools with turned legs for years. When drilling the angled holes for them, I always made a platform set to the desired angle of the legs, and I wound up with multiple platforms with different angles. When I moved my shop to a much smaller space, I decided to create one jig that would replace all those platforms—a jig that would allow me to easily change angles, would be applicable to almost all stool and chair seat shapes, and would take up very little space when not in use.

Before visiting us, it's important to know we don't have a storefront and are not equipped to take in-person sales. All orders must be processed online through our website.If you're local and would prefer to pick up your order rather than pay for shipping, please contact us and we can further assist you.

The jig consists of three pieces of 3⁄4-in. plywood, one for the base and two, face screwed, for the hinged ramp. I made the ramp double thick to stiffen it up and provide a sacrificial surface to drill into.

Insert a scrap below the ramp as a shim to hold the ramp at that angle. Then measure from the bottom of the spacer channel to the underside of the ramp, and cut a spacer to fit.

The spacer can be angled to match the ramp (as I show in the photos), but it doesn’t have to be. It just needs an edge to be the proper height to hold the ramp at the desired angle.

How tomakean angle drilljig

With its graceful curves, cabriole legs, and ornamental back splat, a Queen Anne side chair is a bucket list build for many woodworkers. Dan Faia had a very specific Queen…

How to drillangled holes withoutajig

Become an UNLIMITED member and get it all: searchable online archive of every issue, how-to videos, Complete Illustrated Guide to Woodworking digital series, print magazine, e-newsletter, and more.

Get instant access to over 100 digital plans available only to UNLIMITED members. Start your 14-day FREE trial - and get building!

2020818 — ... carbide is hard and can handle constant pounding and drilling in concrete much better than pretty much anything else. As tools have become more ...

The heart of the jig I designed is the U-shaped cutout centered at the back of the base that gives the jig its controlled pivoting action. The base is hinged at the front edge to the ramped work surface, and spacers of different widths are slid into a channel at the back to adjust the drilling angle while supporting the ramp. The thing is so simple I can’t believe I did not see it sooner.

Even when utilized with a hand drill, our depth stop maintains perpendicularity, ensuring that the countersunk bevel remains consistently rounded for a professional finish. Say hello to effortless precision and bid adieu to the frustrations of traditional countersinking methods with our cutting-edge solution

Strike a front-to-back line at the exact center of each of the pieces of plywood and bring the lines down over the front and back edges. Make sure the centers are aligned when you install the hinges and when you screw the sacrificial piece on top.

Once your spacer is in place, push the jig tight to the curve of the drill-press post, pivot it until it is centered, and clamp the jig to the table. Adjust the drill-press table to the proper height for drilling and you’re ready to drill.☐
