Different software have been developed to help researches draw and visualize helical wheel projections. Some of these are available as simple web applications and were not reported in journal publications [8, 9, 10, 11]. Of those which were published, it was either as part of a larger bioinformatics package [12, 13, 14] or have been developed more than two decades ago using much simpler programming tools which were available at the time [12]. A similar application to draw coiled coils has been published, but it does not cover the general helical wheel projections [15].
Amino acid residue properties, such as polarity and acidity, play a fundamental role in defining peptide and protein secondary structures, as well as their interactions with other substances. Alpha helices are one of the most common secondary structures found in these molecules. They arise from intramolecular interactions between the amino acid residues in peptides or proteins. In order to graphically represent these intramolecular interactions, different projections of the secondary structures of peptides have been created, most notably the wheel (Schiffer-Edmundson) and net projections [1,2].
There are no known training programs for this occupation in PEI. If you are aware of a local training program, please contact us.
Walter. Walter/Valenite Carbide Milling Inserts QTY2 TEGA 4.53.015 P1 SF D720 (LOC2938C). Rating Required. Select Rating, 1 star (worst), 2 stars ...
The thread tapping functions are easiest, so let's talk about that first. Dies are are less frequent, and tend to be more difficult to start perfectly straight.
Jun 29, 2011 — ilmarinen - MODERATOR ... Carbide cuts, and is what you want. Diamond burrs are abrasive devices. They won't hold up long on steel. Diamond has ...
Helices are one of the most common secondary structures found in peptides and proteins. The wheel and net projections have been proposed to represent in two dimensions the tridimensional helical structures and facilitate the observation of their properties, especially in terms of residues polarity and intramolecular bonding. Nevertheless, there are few software options to create these projections. We have developed a web-based application that has several Features to create, customize and export these projections and is freely available at http://lbqp.unb.br/NetWheels or https://neutrophil-proteome.shinyapps.io/netwheels/.
TUNGSTEN CARBIDE BULL NOSE ENDMILS. DATA SHEET ...
Examples of these projections found in the literature vary a lot in terms of aesthetics [4, 5, 6, 7]. Different color schemes have been used, as well as different shapes for polygons representing the residues as well as the lines representing their bonds. Nevertheless, these visual aspects are always used to represent the physicochemical properties of the peptide and highlight characteristics that can be of special interest for specific studies.
The authors declare that there is no conflict of interest regarding the publication of this manuscript. The authors declare that there were no human or animal subjects in the present work as it is only theoretical and computational.
We manufacture diamond polishing compounds for polishing various materials: metals, minerals, metal alloys, glass, ceramic, etc. Let's get it polished!
1Department of Cell Biology, Laboratory of Protein Chemistry and Biochemistry, Institute of Biology, University of Brasilia, Brasília-DF, Brazil.
The web application is accessible and its source code available freely at http://lbqp.unb.br/NetWheels or https://neutrophil-proteome.shinyapps.io/netwheels/ . Its use is very straightforward, with options grouped in tabs (Figure. 1) that are used to set parameters for both wheel and net projections.
202021 — I don't know off-hand what steel your plug guage is made of. I've seen some high end ones made from hss and cheapies made from 304. (which isn't ...
Stay Home. Save Lives: Help Stop Coronavirus. The deadly virus, has affected over a 10 million and caused over 500,000 deaths worldwide.
Even though these applications achieve the purpose of helping visualize the peptide characteristics, they lack the resources necessary to create high quality images ready for publication, especially when different aesthetics options are desired, such as customization of residues polygons, their colors or patterns, as well as size-related properties. While some focus on physicochemical properties of the helices, others are simple tools to visualize the disposition of the residues. We found only one report of a software capable of drawing net projections, however it has been published several years ago and isn’t available online [14].
1915 Shell Ave Martinez, CA, 94553-1305 United States See other locations Phone: Website: igate2.suppliesandsolutions.com
The projections are drawn using the powerful plotting engine of the R programming language and environment [17], which allow for a detailed customization of every figure aspect necessary to get the desired output. The web application, which works as a guided user interface (GUI) for the R plotting functions was created using the shiny package extended with the shinyjs package [18,19]. These packages make the web application development almost uniquely done using the R language, which greatly simplifies its development and maintenance.
Peptide helical wheel projections are drawn in such way that the observer sees the helical structure from the same axis which the helix grows. This is done by displaying each residue on the perimeter of a circle or spiral, with angles of 100 º for every three residues, resulting in 18 resides until positions repeat, following the real conformation of alpha helixes. The wheel projection is mostly useful to visualize the helix regions by peptide properties, namely acidity/basicity and the ability to form hydrophilic (hydrogen) or hydrophobic bonds [3].
Stay Home. Save Lives: Help Stop Coronavirus. The deadly virus, has affected over a 10 million and caused over 500,000 deaths worldwide.

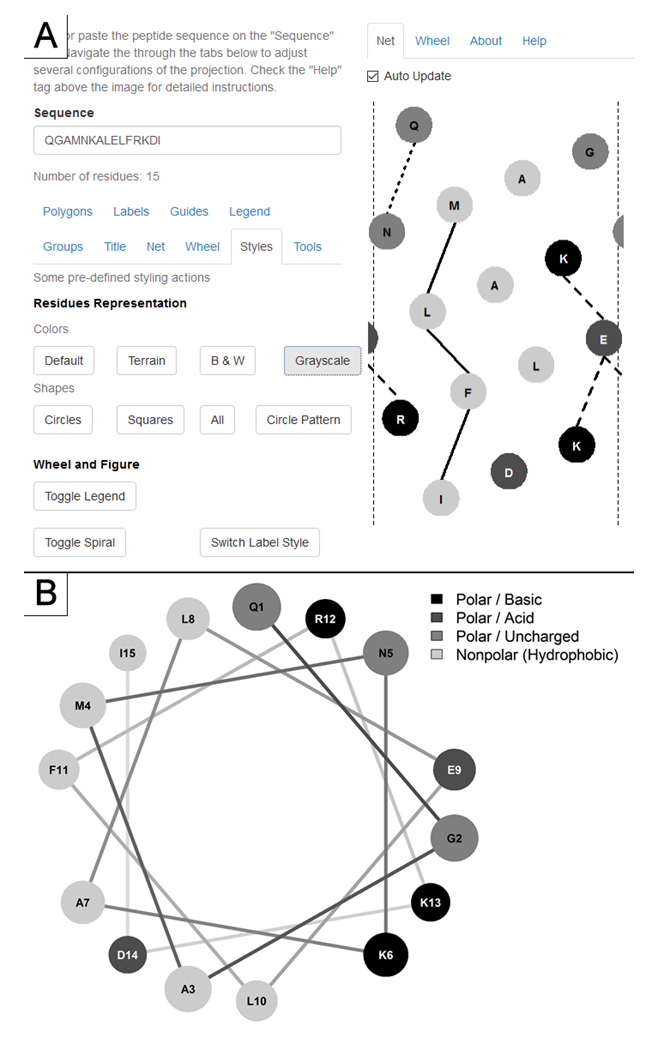

Figure 1: Screenshot of the application showing the tabs used to set the parameters and a net projection (A) and the wheel projection (B) for the same peptide.
CCMT ; Insert IC Size · 6.351 6.351 mm · 7.95 7.95 mm ; Insert IC Size · 0.25 0.25 in · 0.313 0.313 in ; Cutting Edge Length · 6.45 6.45 mm · 8.05
A set of pre-defined styles are available in order to facilitate the use for those without strict customization necessity. Parameters related to the nature of α-helices, namely the 18 residues period and 3.6 residues per turn, can also be changed in order to enable the projection of 310 and π helices. Reproducibility is guaranteed by the option to export all the parameters used to create a given projection, making it easy to load them back in and adjust the projections if necessary, without having to manually reset them. The projections can be exported to different image formats and resolutions, which enables their direct use in documents and presentations without loss of quality.
Fortune Journals follows a rigorous peer-review together with strict ethical policies and standards to ensure high quality scientific works to the field of scholarly publication. Fortune Journals uses best softwares for identifying plagiarism and it never accept articles with higher plagiarism. Articles published under Fortune Journals will be Open-Access articles which are distributed under the terms and conditions of the Creative Commons Attribution License version 4.0. Fortune Journals follows single blind peer-review process, manuscript submitted by an Author is assigned to a particular Editor.
The employment outlook will be moderate for Supervisors, motor transport and other ground transit operators (72024) in Prince Edward Island for the 2022-2024 period.
It is caused when heat generated by the cutting tool transfers to the workpiece material and causes plastic deformation. The process is similar to a heat ...
*Corresponding author: Wagner Fontes, Department of Cell Biology, Laboratory of Protein Chemistry and Biochemistry, Institute of Biology, University of Brasilia, Brasília-DF, Brazil.
Net projections are used for the same structures as wheels, but provide a different perspective to the visualization of the helixes. They focus on displaying specific interactions between residues that are next to each other in terms of the helix central axis. The net projection is created by “cutting” the helix along its axis and displaying the residues perpendicular to it. Intramolecular bonds between residues can be displayed, preferably using different patterns to differentiate the types of interactions.
Jun 10, 2022 — Cutting speed is the speed at which the cutting tool moves through the material being cut. Feed rate is the speed at which the material being cut moves past ...
Citation: Mól AR, Castro MS, Fontes W. NetWheels: A Web Application to Create High Quality Peptide Helical Wheel and Net Projections. Journal of Bioinformatics and Systems Biology. 7 (2024): 98-100.
Therefore, the aim of this web application is to provide an easy to use, open source yet powerful tool to create peptide wheel and net projections, which can be highly customizable and exported in high quality graphics formats.
We believe that the NetWheels application can be of great value for those looking to design high-quality customized projections.
Supervisors of motor transport and other ground transit operators supervise and coordinate activities of truck drivers, bus drivers, delivery drivers, subway and other transit operators, chauffeurs and taxi and limousine drivers. This unit group also includes bus dispatchers who co-ordinate the activities of transit system bus drivers and subway traffic controllers who operate and monitor signal and track switch control panels. They are employed by motor transportation and ground transit companies and by urban transit systems.
The amino acid residues are classified in four groups: basic, acid, uncharged polar and nonpolar. There is also the possibility of specifying an unknown residue group. Each group can have its aesthetics properties adjusted individually, such as polygon type, fill (colors and patterns) and borders, and also labeling properties regarding position, font-size and amino acid code style.
