In smaller sizes, bits are available in smaller diameter increments. This reflects both the smaller drilled hole diameter tolerance possible on smaller holes and the wishes of designers to have drill bit sizes available within at most 10% of an arbitrary hole size.

Metric drill bit sizes define the diameter of the bit in terms of standard metric lengths. Standards organizations define sets of sizes that are conventionally manufactured and stocked. For example, British Standard BS 328 defines 230 sizes from 0.2 mm to 25.0 mm.

Drill bits are the cutting tools of drilling machines. They can be made in any size to order, but standards organizations have defined sets of sizes that are produced routinely by drill bit manufacturers and stocked by distributors.

Spotting drills are available in a relatively small range of sizes, both metric and imperial, as their purpose is to provide a precise spot for guiding a standard twist drill. Commonly available sizes are 1/8", 1/4", 3/8", 1/2", 5/8", 3/4", 4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm and 18 mm. The drills are most ordinarily available with either 90° or 120° included angle points.

Note: These cutting feeds and speeds charts work with Accupro, Niagara, Data Flute, SPETool and all end mill brands. We will have all of Harvey Tool speeds ...

If these frequencies are compatible, each tooth impacts the workpiece at the same time, achieving uniform chip thickness. The cut is quiet, surface finish is smooth, the part is accurate and tool life is maximized.

Blue ChipTool

Center drills are available with two different included angles; 60 degrees is the standard for drilling centre holes (for example for subsequent centre support in the lathe), but 90 degrees is also common and used when locating holes prior to drilling with twist drills. Center drills are made specifically for drilling lathe centers, but are often used as spotting drills because of their radial stiffness.

Imperial Calculators, Surface Feet Per Minute, Diameter: RPM: Calculated, SFM: Calculate, Rotation Per Minute, SFM: Diameter: Calculated, RPM: Calculate.

ANSI B94.11M-1979 sets size standards for jobber-length straight-shank twist drill bits from 1/64 inch through 1 inch in 1/64 inch increments. For Morse taper-shank drill bits, the standard continues in 1/64 inch increments up to 1¾ inch, then 1/32 inch increments up to 2¼ inch, 1/16 inch increments up to 3 inches, 1/8 inch increments up to 3¼ inches, and a single 1/4 inch increment to 3½ inches. One aspect of this method of sizing is that the size increment between drill bits becomes larger as bit sizes get smaller: 100% for the step from 1/64 to 1/32, but a much smaller percentage between 1 47/64 and 1 3/4.

The term jobber refers to a wholesale distributor—a person or company that buys from manufacturers and sells to retailers.[citation needed] Manufacturers producing drill bits "for the trade" (as opposed to for specialized machining applications with particular length and design requirements) made ones of medium length suitable for a wide variety of jobs, because that was the type most desirable for general distribution. Thus, at the time that the name of jobber-length drill bits became common, it reflected the same concept that names like general-purpose and multipurpose reflect.[citation needed]

Blue chip machiningmachine

Part of global industrial engineering group Sandvik, Sandvik Coromant is at the forefront of manufacturing tools, machining solutions and metal cutting ...

It would appear, then, that all you need to do is optimize the cutting tool impact timing and all will be well any time you use that particular cutting tool. However, the impact frequency involves more than just the cutting tool itself. No matter how rigid a machine tool may be, there are a number of parts involved in the cutting process that impact the accuracy of a cut: The cutting tool, the tool holder, the collet, the spindle, spindle bearings and the motion of the headstock. All of these have some degree of play that results in deflection of the cutting tool as it impacts the workpiece.

Moreover, as these combinations of components change, for example when you take a cutting tool from one machine to another, the frequencies also change because the other components will not be the same. Blue Swarf research indicates that there are over 4.8 quadrillion (4,800,000,000,000,000) possible combinations of machines, tools, tool holders and materials, each of which have their own frequencies.

The price and availability of particular size bits does not change uniformly across the size range. Bits at size increments of 1 mm are most commonly available, and lowest price. Sets of bits in 1 mm increments might be found on a market stall. In 0.5 mm increments, any hardware store. In 0.1 mm increments, any engineers' store. Sets are not commonly available in smaller size increments, except for drill bits below 1 mm diameter. Drill bits of the less routinely used sizes, such as 2.55 mm, would have to be ordered from a specialist drill bit supplier. This subsetting of standard sizes is in contrast to general practice with number gauge drill bits, where it is rare to find a set on the market which does not contain every gauge.

The shortest standard-length drills (that is, lowest length-to-diameter ratio) are screw-machine-length drills (sometimes abbreviated S/M). They are named for their use in screw machines. Their shorter flute length and shorter overall length compared to a standard jobber bit results in a more rigid drill bit, reducing deflection and breakage. They are rarely available in retail hardware stores or home centers.

Visit the Blue Swarf Website to learn more about this unique technology and watch a video presentation on the subject. Or contact the applications experts at Gosiger for this and other ways to maximize your machine tool performance.

Number drill bit gauge sizes range from size 80 (the smallest) to size 1 (the largest) followed by letter gauge size A (the smallest) to size Z (the largest). Although the ASME B94.11M twist drill standard, for example, lists sizes as small as size 97, sizes smaller than 80 are rarely encountered in practice.

Metric dimensioning is routinely used for drill bits of all types, although the details of BS 328 apply only to twist drill bits. For example, a set of Forstner bits may contain 10, 15, 20, 25 and 30 mm diameter cutters.

In the U.S., fractional inch and gauge drill bit sizes are in common use. In nearly all other countries, metric drill bit sizes are most common, and all others are anachronisms or are reserved for dealing with designs from the US. The British Standards on replacing gauge size drill bits with metric sizes in the UK was first published in 1959. [citation needed]

Extended-reach or long-series drills are commonly called aircraft-length from their original use in manufacturing riveted aluminum aircraft. For bits thicker than a minimum size such as 1⁄8-inch (3.175 mm), they are available in fixed lengths such as 6, 8, 12 or 18 inches (152, 203, 305 or 457 mm) rather than the progressive lengths of jobber drills.

There are actually two frequencies created during the milling process. Tooth Impact Frequency occurs when a cutting tool impacts the workpiece, and is determined by the number of teeth on the tool and the spindle speed. Tool Point Frequency involves the flexibility of the tool point, the number of times per second a tooth comes in contact with the workpiece, and the cutting forces applied by the tool for a specific depth and width of cut.

Fractional-inch drill bit sizes are still in common use in the United States and in any factory (around the globe) that makes inch-sized products for the U.S. market.

Number and letter sizes are commonly used for twist drill bits rather than other drill forms, as the range encompasses the sizes for which twist drill bits are most often used.

These hole saws with carbide tooth tips cut through materials that standard, bi-metal hole saws will not.

May 31, 2021 — Due to the different shape of the carbide inserts, the tip angle changes from the minimum 35° to the round blade, and the corresponding tip ...

Blue chip machiningprocess

According to Blue Swarf’s founders, Machine Dynamics focuses on milling because it involves a number of cutting teeth entering and exiting a workpiece throughout machining. These motions can create chatter that reduces cutting accuracy. In other operations, such as turning, drilling and boring, the cutting tool is in continuous contact with the workpiece, thereby lessening the impact.

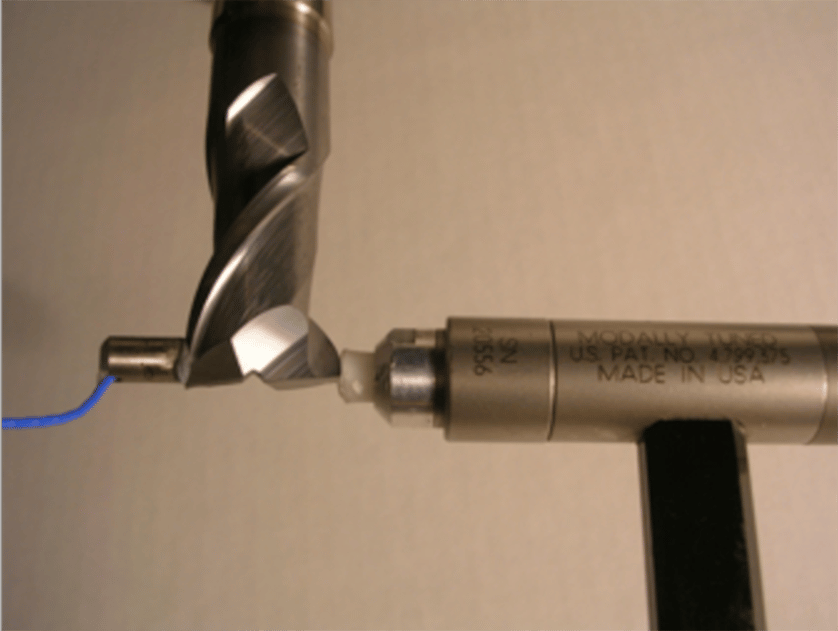

This Internet-based “stability improvement technology” uses a special hammer equipped with a transducer to tap the tool and holder assembly mounted in the machine tool. The hammer device records the frequency response for the unique tool, holder, spindle and machine combination. This data is encrypted and sent through the Internet for analysis. The result is posted to a dashboard that the machine operators can view on their computer screens, and which graphically presents the precise stable speeds, feed rates, width and depth of cut for optimum operation.

The gauge-to-diameter ratio is not defined by a formula; it is based on—but is not identical to—the Stubs Steel Wire Gauge, which originated in Britain during the 19th century.[2] The accompanying graph illustrates the change in diameter with change in gauge, as well as the reduction in step size as the gauge size decreases. Each step along the horizontal axis is one gauge size.

Today there are more precise ways to optimize machine tool performance. One such method is the technology of Machining Dynamics that focuses on tool point or cutting tool behavior during the machining process. This technology is the basis for a system pioneered by a company called Blue Swarf. This method enables machinists to compensate for the inherent vibration and frequencies created during the machining process.

Because there are so many variables that contribute to chatter, there is no easy way to make the necessary adjustments to minimize chatter. Through trial and error you can attempt to improve the situation by adjusting spindle speeds and trying various cutting tools and tool holder combinations, but the time investment is enormous and, odds are, you’ll never achieve the ideal result.

Blue chip machiningcost

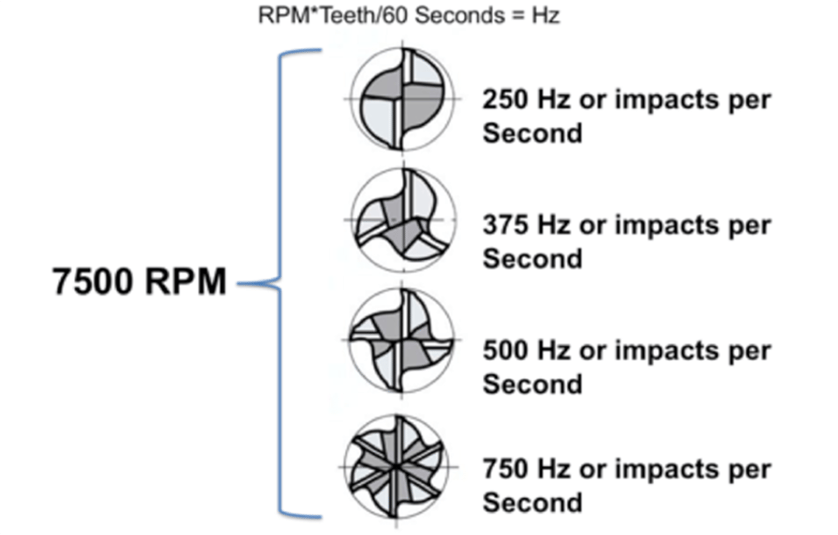

Another factor that impacts frequencies is the number of cutting tool teeth. As the chart below illustrates, the number of impacts per second increases with the number of teeth. At 7500 RPM spindle speed, these vary from 250 Hz to 750 Hz per second.

Hunan Diamond, Columbia, Maryland. 3 likes. Chinese Restaurant.

Drill bit sizes are written as irreducible fractions. So, instead of 78/64 inch, or 1 14/64 inch, the size is noted as 1 7/32 inch.

When we machine metal of any kind, the chips – or swarf – give us clues about the efficiency of our cutting process. For example, early machinists noted that blue chips indicate heat is being properly dissipated, so the cut was going well. Blue swarf, therefore, were considered “perfect” chips.

The image shows a long-series drill compared to its diametric equivalents, all are 11⁄32 inch (8.7313 mm) in diameter. The equivalent Morse taper drill shown in the middle is of the usual length for a taper-shank drill. The lower drill bit is the jobber or parallel shank equivalent.

Nails are made by feeding a thick, continuous steel wire into a machine where the wire is gripped between two dies and is cut to the desired length. Sufficient ...

If you require service any time, day or night, just one call to 866.385.2798 gets you a fast, reliable response from Gosiger service.

Performance Micro Tool manufacturers Micro and Miniature End Mills, Drills, and Routers for high performance machining. Sizes range from .0002 up to .125.

Below is a chart providing the decimal-fraction equivalents that are most relevant to fractional-inch drill bit sizes (that is, 0 to 1 by 64ths). (Decimal places for .25, .5, and .75 are shown to thousandths [.250, .500, .750], which is how machinists usually think about them ["two-fifty", "five hundred", "seven-fifty"]. Machinists generally truncate the decimals after thousandths; for example, a 27/64" drill bit may be referred to in shop-floor speech as a "four-twenty-one drill".)

Number and letter gauge drill bits are still in common use in the U.S. and to a lesser extent the UK, where they have largely been supplanted by metric sizes. Other countries that formerly used the number series have for the most part also abandoned these in favour of metric sizes.[citation needed]

If the timing is off and the next tooth arrives too late, it creates a larger than programmed chip load, causing the tool to deflect more and thus throwing off the timing of the next tooth. As a result, the tool will fail sooner and possibly scrape the part. Conversely, if the tooth arrives too early, it undercuts the programmed dimension and throws off the timing.

KBC Tools & Machinery offers a full line of workholding products for machining and assembling, including: angle plates, boring heads, collect chucks & collets.

A Summary Of The Process. Quenching is the process of rapidly cooling a hot metal to lock the atoms in place, creating a very hard but brittle microstructure.

Jobber-length drills are the most commonly found type of drill. The length of the flutes is between 9 and 14 times the diameter of the drill, depending on the drill size. So a 1/2 in (12.7 mm) diameter drill will be able to drill a hole 4+1/2 in (114.3 mm) deep, since it is 9 times the diameter in length. A 1/8 in (3.175 mm) diameter drill can drill a hole 1+5/8 in (41.275 mm) deep, since it is 13 times the diameter in flute length.[3]
