Solvolysis uses a chemical solvent to break down the polymer encasing the carbon fiber cloth. The waste carbon fiber is shredded into smaller pieces, increasing the surface area. The solvent, chosen based on the polymers used in the carbon fiber, breaks down the polymer chains, separating the carbon fiber from the polymer. Techniques like centrifugation are used to separate the substances. The carbon fiber can be further purified to restore its properties and then combined with virgin fibers to create new fabric or used by itself. This process enables the recovery of carbon fiber without sacrificing material properties.

Carbon fiber sheets require a significant amount of energy to produce. These large sheets are then cut down to the part size needed, and the excess material is often discarded, increasing waste production. This material is not biodegradable and is typically sent to a landfill where it will remain permanently. Further complicating recycling, carbon fiber is built to hold its shape and strength and cannot be melted down and reshaped like many plastics. When recycled, its properties are heavily degraded, rendering it useless for applications that experience heavy forces or loads.

Typically, in metal machining, most of the heat is transferred into the chips with a fraction of the heat into the part and workpiece. Due to CFRP’s low thermal conductivity and no chips formed to dissipate the heat, most of the heat is transferred to the tool and part. This heat is unideal, as it will cause more tool wear and potentially cause damage, resulting in delamination.

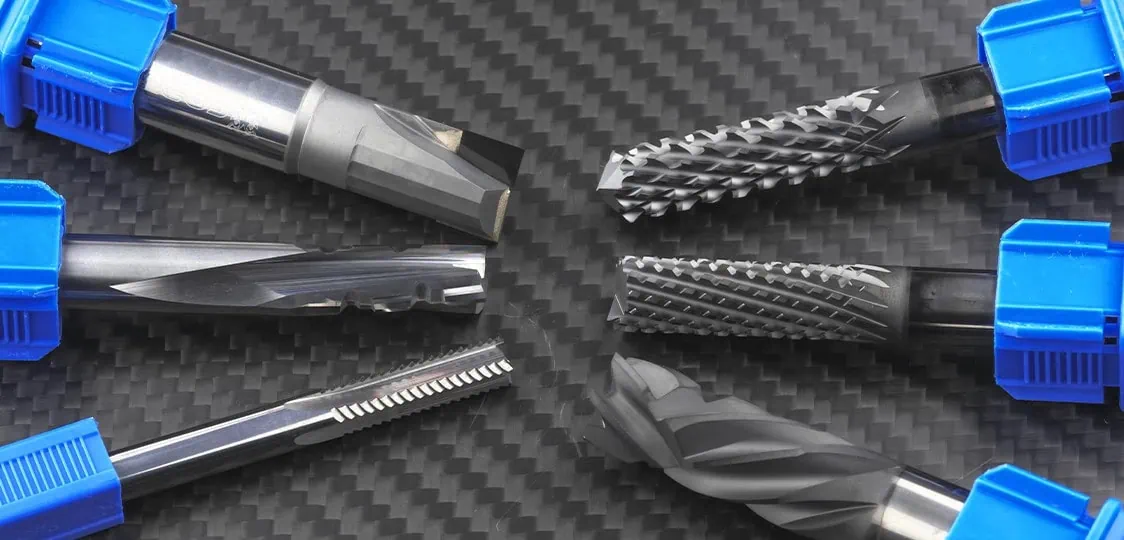

The geometry of a tool also plays a vital role in its machining capabilities of CFRP. There are many different geometry solutions, depending on your application, with different flutes, angle of cut approach, and profile. Corehog’s selection of CFRP Router Bits offer a great solution to your various CFRP needs.

CFRP has a high resistance to being deformed without permanent effects (elastic modulus), resistance to tension, low thermal conductivity, and low thermal expansion. While many of these properties are ideal for many applications, there are unique effects that must be considered when machining.

CFRP materialproperties

Tooling material type (substrate) and geometry both determine the quality of cutting the carbon fiber and durability of the tool.

Carbon fiber Reinforced polymer price per kg

While PCD diamond tools are considerably higher in price than other diamond coated tooling options, they provide the longest tool life and performance against abrasion and tool wear. Often, they are more cost effective in the long run due to their longevity, when compared to cheaper options that only save money in the short term.

Carbon fibre reinforced polymer structure

Pyrolytic utilizes heat to break down the polymer encasing the carbon fiber cloth. The waste carbon fiber is shredded into smaller pieces and then heated in a controlled environment with limited or no oxygen. At high temperatures, the polymer undergoes thermal decomposition, producing gases, vapors, and char. The gases and vapors can be used as an energy source or further processed, while the char, which is carbon fiber and any original additives, is purified to ensure mechanical properties are maintained. The resulting carbon fiber can be used alone or combined with virgin fibers. Pyrolysis is effective for high-quality fiber recovery and energy recovery from gas byproducts.

Cfrp materialdensity

Carbon Fiber Reinforced Polymers (CFRP) is composed of carbon fibers, bound with resin, to create a groundbreaking material that has proven to have limitless application possibilities in a wide range of composite cutting industries. Due to its attractive properties of strength, durability, corrosion resistance, and its lightweight nature, there has been a rising utilization of carbon fiber in the aerospace and automotive industries. However, it does not come without its own set of challenges in comparison to typical metal machining.

www.harveytool.com www.helicaltool.com www.micro100.com www.titancuttingtools.com www.corehog.com www.valorholemaking.com

What isCFRPused for

Carbon fiber is a woven cloth made of crystalline filaments of carbon cured with a polymer, which can be layered and shaped around a mold. It is an ideal material due to its impressive strength-to-weight ratio , meaning it’s very strong, but not heavy. Carbon fiber is five times lighter than steel with an equal elastic modulus, making it a better choice for many applications. Further, it is corrosion-resistant, non-flammable, and non-toxic, properties that make it an ideal material to use in aerospace, medical, construction, and military industries.

Sign up to receive a monthly recap of: – The latest machining solutions – Machining tips and tricks – A recap of our most popular posts

CFRP’s high elastic modulus makes it highly abrasive, causing challenges in tool wear and tool life that must be addressed. For example, while milling typical metals, clean chips are formed and ejected. But milling carbon fiber is like sanding, where material is removed in the form of dust particles.

CFRP Materialprice

Carbon fiber reinforced polymer PDF

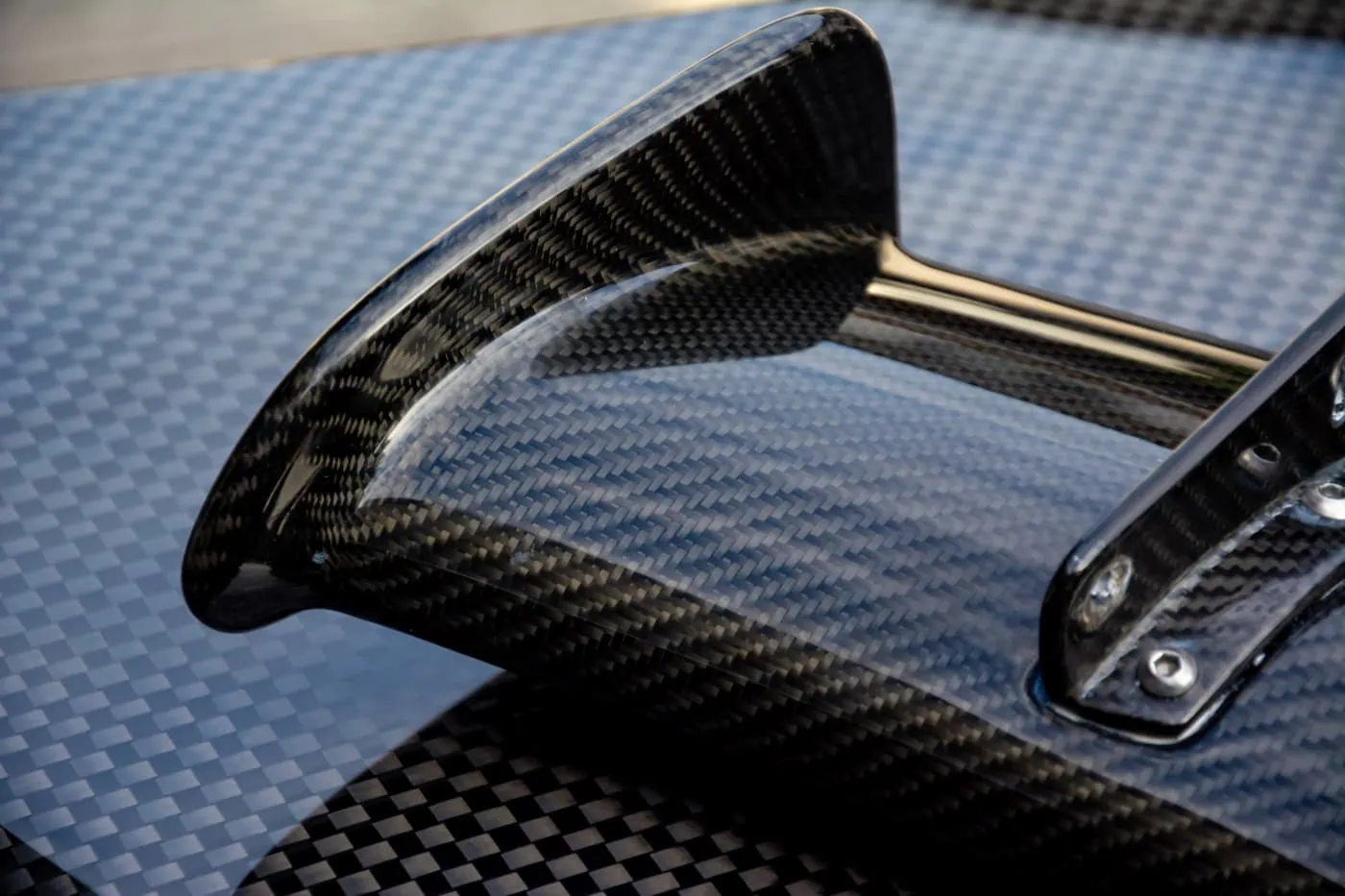

In the aerospace industry, carbon fiber is used in plane structures to replace alloys, creating lighter planes and thus, reducing fuel consumption. Recreational sports also utilize carbon fiber to decrease weight. It is often seen as a leading material in skis, bikes, and tennis rackets, as the lighter weight can help improve performance. In professional sports leagues like Formula 1 and NASCAR, carbon fiber has grown in prevalence in recent years. Another advantageous quality of carbon fiber is its suitability in X-ray machines, allowing imaging to pass through without interruption, making it useful in many medical devices and implants.

Sarah Wasson works as a technical sales associate for Harvey Performance Company, focusing on the CoreHog brand of custom composite tooling for the aerospace industry. She graduated in May of 2023 from the University of Vermont with a Bachelor of Science in Mechanical Engineering.

In comparison to the cost of the part to be machined, the tool may be a fraction of the cost, making it worth spending the extra money to prevent greater costs that come with scrapping the part. Composite cutting tool manufacturer, CoreHog, stocks an array of PCD Diamond End Mills in Square and Ball Nose profiles.

When selecting a tool to machine CFRP materials, it is essential to opt for a tool that is strong, sharp, and resistant to the abrasive properties that CFRP holds. Many machinists opt for solid carbide cutters with diamond coatings such as DLC, CVD, or PCD, as they provide the tooling with increased tool life and improved cutting action. These tools provide added hardness and abrasion resistance to combat the effects of machining CFRP.

As we innovate with new technology, it is important to consider its impact on our planet. Carbon fiber is an amazing material that can improve many aspects across industries; however, the waste generated is not going anywhere but a landfill. Many companies are investing in producing high-quality recycled carbon fiber. With a shift in focus to designing closed-loop systems for composite materials, the future looks bright.

Abrasion is a large issue in carbon fiber machining as it is responsible for poor tool life and dullness of the tool that can cause a part to be scrapped. As soon as a tool begins to dull, it will cause poor part finish and increase the chances of delamination and fraying.

Cfrp materialvs carbon fiber

No composition of CFRP is made the same, meaning that operating parameters can vary. There is no one-solution-fits-all for every application, as it is often found to be less predictable than metals due to its varying properties. These varying components includes the fiber type, fiber density, resin type, layup orientations, thickness, matrix hardness, and heat sensitivity, which all must be taken into consideration.

Sign up to receive a monthly recap of: – The latest machining solutions – Machining tips and tricks – A recap of our most popular posts

As a member of Harvey Performance Company’s New Product Development team, Matthew calls upon his degree in engineering and his mindset to determine the best course of action in developing new products for Harvey Performance Company.

Machining Carbon Fiber can be challenging. The layered structure of the carbon fiber material can lead to delamination, uncut fibers, fiber tear-out, uneven tool wear, and poor surface finishes. Luckily, many cutting tool companies, like CoreHog, specially design tooling with different geometries that can help eliminate these manufacturing problems:

Having high interval checks to monitor cutting and dimension quality to catch any errors before they may be irreversible is one way address CFRP machining issues. Another method to tackle CFRP would be through picking the right tool for the application.
