Face grooving is not always a straightforward process. Whether you’re machining circular grooves into the face of a workpiece or widening the initial groove; speeds and feeds, chip evacuation, tool wear, and tool rigidity all play important roles. However, you also need to account for the tool and workpiece clearances on the initial plunge to avoid costly damage to the workpiece and toolholder.

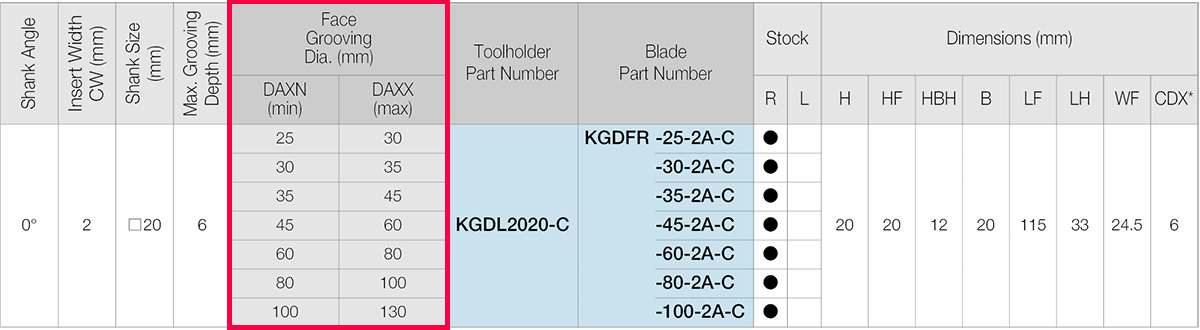

Indexable face groove holders are listed with a minimum face groove diameter (DAXN) and a maximum face groove diameter (DAXX). These two measurements indicate the diameter range for the initial plunge to keep the curved blade of the cutter from interfering with the edges of the groove when entering the workpiece. The blades of these face groove tools provide added support under the insert to give the holder the rigidity needed to eliminate chattering and vibrations from occurring. These blades are designed with a curved side to follow the initial groove into the workpiece without contacting the edges of the groove.

Add products to your Titancuttingtools.com shopping cart and then submit the cart to a participating distributor to place your order

Face groovingtool holder

After selecting a tool that does not interfere with the part during the initial plunge, you may then widen the groove inward towards the center or outward from the initial groove. It is normally recommended to start at your outside targeted groove diameter and make your way inward for better chip control.

To view an example of this, the diagram on the right features a KGDFR-80-2A-C blade with a 2mm groove width (CW). This holder has a minimum listed face groove diameter (DAXN) of 80mm and a maximum face groove diameter (DAXX) of 100mm. A starting groove diameter larger than 100mm or smaller than 80mm will cause interference with the curvature of the blade inside the cut during the initial plunge. This interference can be catastrophic to the blade, insert, and workpiece.

Face groovingtool range

When performing face grooves around a boss on the workpiece, you need to choose a toolholder that will give you the needed reach, groove depth, and face groove range to clear any protrusions.

Titan USA Chamfer Mills designed with a flat tip (non-cutting) for increased strength in chamfering and profiling application . . .

Explore our SGS branded high-performance and versatile solid round tooling options. Our quality tooling not only ensures precision but also minimizes downtime, allowing for increased material removal per hour. Explore a range of options including end mills, drills, routers, countersinks, and more to find the perfect tools for your specific needs.

With replaceable head face grooving systems, the blades are interchangeable with the holder allowing the operator to easily replace a damaged blade or switch out sizes without removing the holder from the machine. With these systems, the blade is what will determine the groove width, maximum depth, and diameter ranges that can be achieved.
