We offer both finish machined & plated Picatinny Rail Sections and raw extruded Picatinny Rail Blanks in the length shown below. Note: we can also supply longer lengths of raw extruded Picatinny Rail Blank. Please call for a quote.

mil-std-1913pdf

mil-std1913rail dimensions

1913rail vs Picatinny

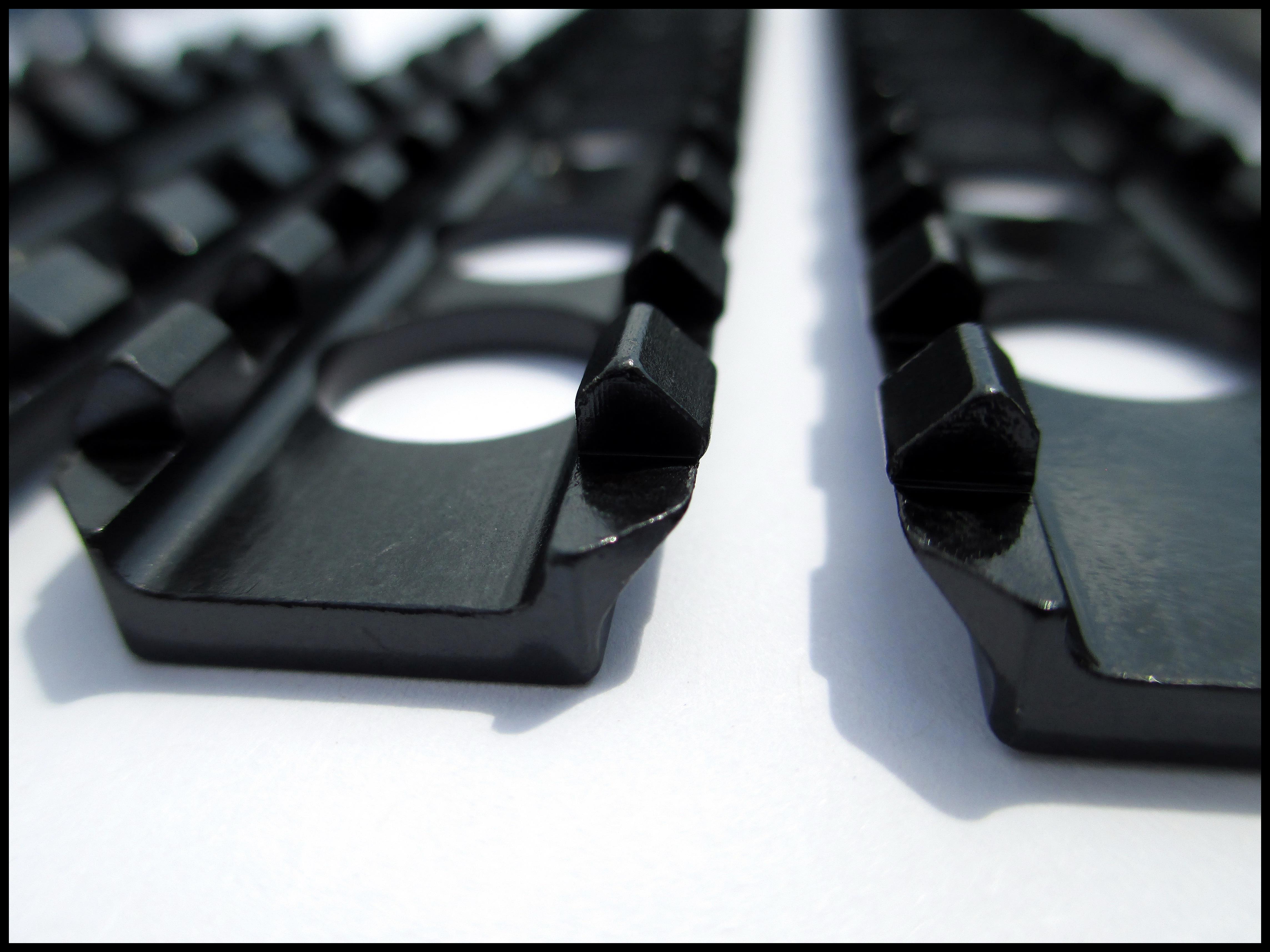

Our high strength pic rail profile conforms to MIL-STD 1913 and is cold drawn extruded here in the United States from our own dies using low carbon steel. This raw blank extrusion is a lightweight (.5267 oz/in) with a minimal mass cross section (.1158 in²) and is just 5/16″ in overall height or thickness. Recoil grooves conforming to MIL-STD 1913 are then machined as well as weight reduction and mounting holes. For corrosion resistance and reduced light glare, we use a hot oxidizing process (MIL-C-13924) to produce a black oxide iron magnetite (Fe3O4) finish.

*PRS80032 is a saw cut length of blank extrusion. It has no mounting holes and has not been machined or plated. The extrusion surface has a “waxy” film from lubrication applied during the manufacturing process. It will need to be thoroughly cleaned prior to any painting or plating.
